Choosing the right automatic car wash machine is an important decision for car wash operators, automotive service businesses, equipment distributors, and investors. Tunnel, rollover, and touchless systems differ in vehicle movement, cleaning methods, space requirements, operating processes, and investment considerations. Understanding these differences helps buyers compare equipment based on their actual business needs rather than price alone.
YASN Show, Over 20 years of deep engagement in the industry will explains how each system works, where it may be suitable, and what to evaluate before purchasing. If you are also exploring equipment and suppliers across the automotive aftermarket, you can browse car wash machines and related equipment available through the YASNShow automotive aftermarket product directory.
1. What Is the Difference Between Tunnel, Rollover, and Touchless Car Wash Machines?
The first thing buyers should understand is that these terms describe different aspects of a car wash system. A tunnel system describes the equipment layout and how vehicles move through the washing process. A rollover system describes a machine that moves around a stationary vehicle. Touchless describes a cleaning method that uses water pressure and cleaning chemicals without brushes contacting the vehicle.
These categories are not always mutually exclusive. For example, a rollover machine can use brushes or operate as a touchless system. Buyers should therefore compare both the equipment configuration and the cleaning method.
| Comparison Factor | Tunnel Car Wash | Rollover Car Wash | Touchless Car Wash |
|---|---|---|---|
| Vehicle movement | Vehicle moves through fixed washing stations | Vehicle stays in place while the gantry moves | Depends on the system layout |
| Cleaning method | Brushes, high-pressure water, or a combination | Brushes, high-pressure water, or a hybrid setup | High-pressure water and cleaning chemicals |
| Space requirements | Generally requires a longer installation area | Usually suitable for a single wash bay | Depends on whether it uses a rollover or tunnel layout |
| Throughput | Designed for continuous vehicle flow | Processes vehicles individually per bay | Depends on cycle time and system configuration |
| Main consideration | Capacity, layout, and workflow | Available space and cycle time | Cleaning chemistry and high-pressure performance |

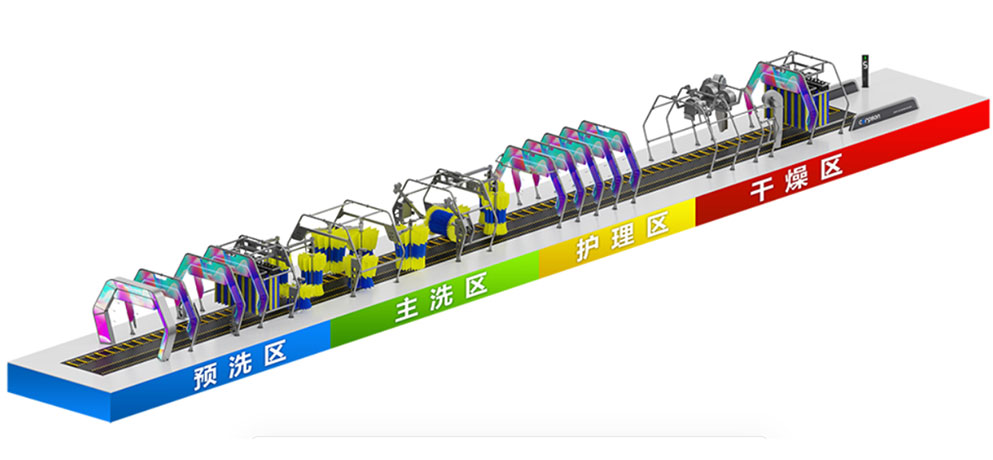

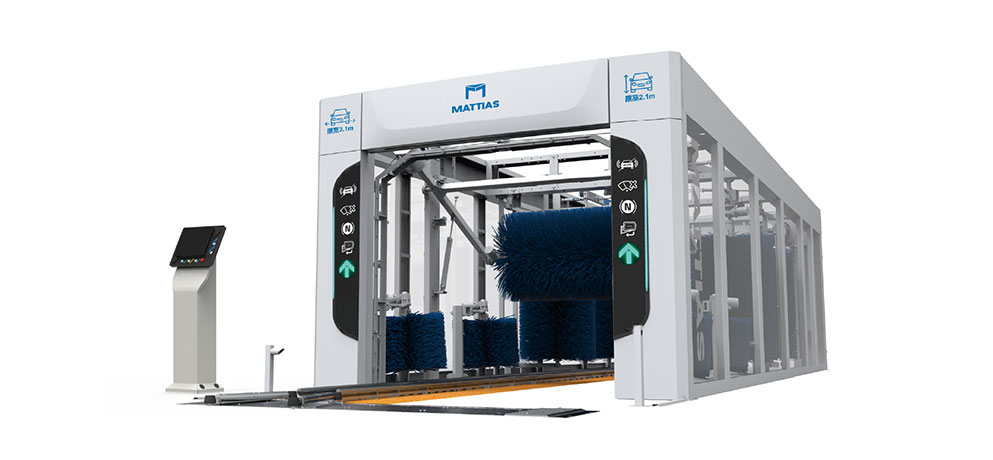

2. Tunnel Car Wash Machines: Designed for Continuous Vehicle Flow
A tunnel car wash machine moves vehicles through a sequence of washing stations using a conveyor or another vehicle transport system. Depending on the configuration, the process may include pre-soaking, foam application, high-pressure washing, brush cleaning, rinsing, protective treatments, and drying.
Key Advantages of Tunnel Car Wash Systems
Continuous workflow: Multiple vehicles can move through different stages of the washing process at the same time.
High-volume potential: A properly designed tunnel may suit locations with substantial daily demand and peak-hour traffic.
Flexible service packages: Operators can configure different washing, wheel-cleaning, coating, and drying options according to their business model.
Expansion opportunities: The system can be planned around future capacity requirements when the site and budget allow.
What Buyers Should Consider
Tunnel installations generally require more space and more extensive site planning than a single-bay automatic car wash. Buyers should evaluate vehicle queuing space, conveyor layout, building requirements, electrical capacity, water supply, drainage, maintenance access, and local installation regulations.
Actual throughput depends on tunnel length, equipment configuration, vehicle spacing, wash programs, staffing, and site operations. Ask manufacturers for rated capacity and practical operating assumptions rather than relying on a headline cars-per-hour figure.
Explore relevant tunnel car wash equipment to compare available configurations and identify specifications that match your project.

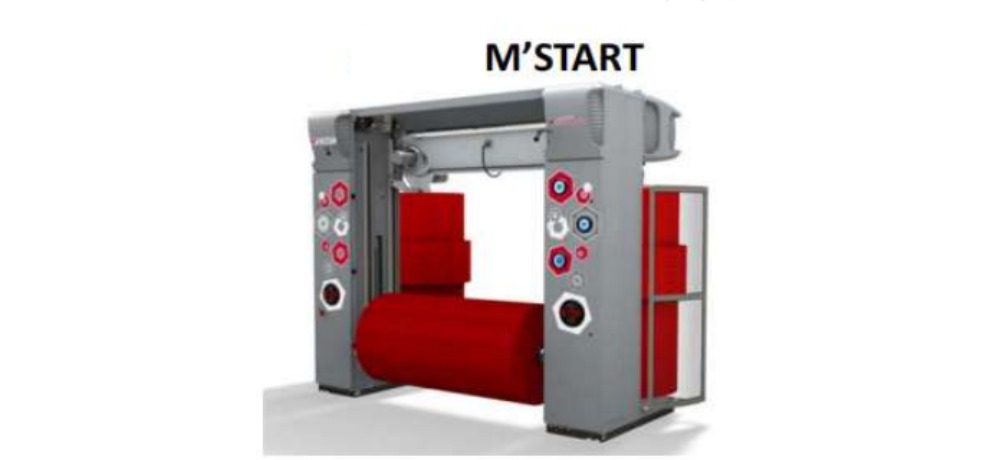

3. Rollover Car Wash Machines: A Practical Option for Individual Wash Bays
A rollover car wash machine, also known as an in-bay automatic car wash, operates differently from a conveyor tunnel. The driver positions the vehicle in a designated bay and follows the machine's safety instructions. The vehicle remains stationary while a moving gantry travels around it to perform programmed washing operations.
Key Advantages of Rollover Systems
Compact layout: A single-bay installation may fit locations where a full tunnel is impractical.
Flexible applications: Rollover systems can be considered for fuel stations, dealerships, independent car washes, and automotive service facilities.
Configurable cleaning methods: Depending on the model, buyers may choose brush-based, touchless, or hybrid configurations.
Controlled wash cycles: Programmed operations make it easier to define standard wash packages and cycle sequences.
Potential Limitations
Because each bay normally processes one vehicle per cycle, the machine's capacity is closely linked to cycle duration and vehicle turnover. Queues may develop during busy periods if demand exceeds available capacity. Before buying, check the maximum vehicle dimensions, bay clearance, gantry travel, wash cycle duration, drying performance, utility requirements, maintenance arrangements, and availability of replacement parts. For projects that need a compact automatic washing solution, compare the specifications of available rollover car wash machines with your site's dimensions and expected daily demand.

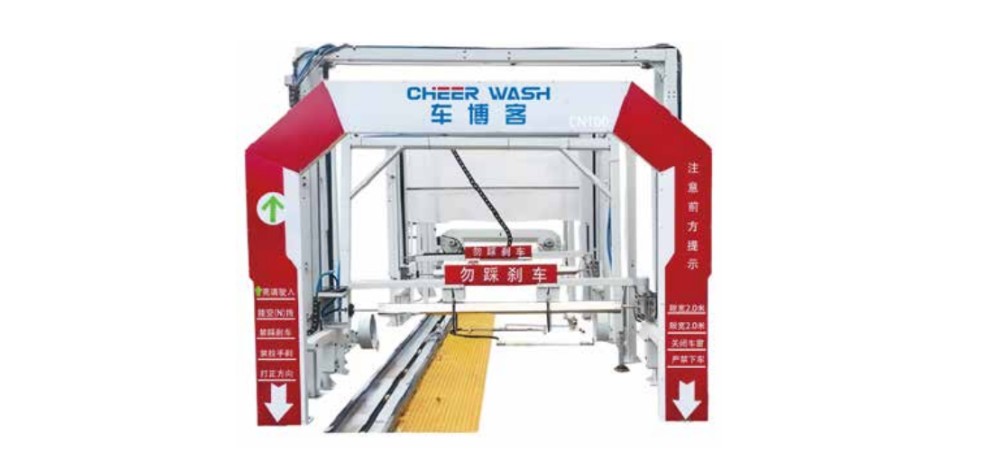

4. Touchless Car Wash Machines: Cleaning Without Brush Contact
A touchless car wash machine cleans vehicles using high-pressure water, detergents, and programmed spray sequences without brushes or cloth strips contacting the exterior. Many systems also offer pre-soaking, foam application, rinsing, and optional drying or protective treatments.
Touchless describes the cleaning method rather than a single equipment layout. Many touchless systems use a moving gantry in an in-bay installation, although other configurations are possible.
Key Advantages of Touchless Systems
No brush contact: The washing equipment does not use brushes to scrub the vehicle's exterior.
Fewer brush-related maintenance tasks: Operators do not need to replace or maintain washing brushes, although pumps, nozzles, sensors, and other components still require servicing.
Flexible chemical programs: Detergent selection and application settings can be adjusted to suit the intended washing process.
Potential appeal to paint-conscious customers: The no-brush approach may appeal to customers who prefer to avoid direct contact between washing materials and vehicle paint.
What Buyers Should Consider
Touchless cleaning relies heavily on water pressure, nozzle coverage, detergent performance, chemical dwell time, and wash-program design. Heavy mud, stubborn road film, and heavily contaminated vehicles may require additional treatment or longer cycles.
No-brush washing does not automatically guarantee a perfect finish or eliminate every risk to a vehicle's exterior. Buyers should evaluate demonstrated cleaning results, chemical consumption, water usage, pump specifications, drying performance, and maintenance requirements.
Review available touchless car wash machines to compare cleaning programs, operating requirements, and optional features.
5. Tunnel vs Rollover vs Touchless: Which System Should You Choose?
The most suitable automatic car wash machine depends on your location, expected demand, available space, customer expectations, operating budget, and maintenance capabilities. The following scenarios can help narrow your options.
Choose a Tunnel System for a High-Volume Operation
A tunnel may be worth evaluating if your business expects substantial vehicle demand, has sufficient land for the equipment and queues, and plans to offer a continuous washing service. Before investing, model peak-hour demand and confirm that the proposed system can support your intended workflow.
Choose a Rollover System for a Single-Bay Installation
A rollover machine may be more appropriate when space is limited, demand is moderate, or automatic washing will complement an existing fuel station, dealership, or service facility. Compare the wash cycle and expected daily capacity with your busiest operating periods.
Choose a Touchless System When No-Brush Washing Matters
A touchless system may suit businesses that want to offer a no-brush cleaning option. Its suitability depends on local customer preferences, the types of vehicles being washed, chemical availability, water pressure, and the cleaning performance required.
Consider a Hybrid Configuration When Requirements Overlap
Some projects need more than one cleaning method. A hybrid configuration may combine high-pressure washing with brush contact, while a tunnel or rollover layout determines how the vehicle and equipment move. Ask suppliers to explain the actual configuration instead of treating tunnel, rollover, and touchless as three completely separate machine categories.
6. A Car Wash Equipment Buying Checklist
Before requesting quotations, prepare a clear specification so suppliers can recommend comparable equipment. The following checklist can help commercial buyers evaluate different proposals.
Application: Is the equipment intended for a fuel station, independent car wash, dealership, fleet facility, or another commercial location?
Vehicle types: Will you wash passenger cars, SUVs, vans, buses, or mixed fleets?
Capacity: What are your average daily demand and peak-hour requirements?
Site dimensions: What are the available length, width, height, entry, and exit clearances?
Cleaning method: Do you need brush cleaning, touchless washing, or a hybrid program?
Utilities: What electrical supply, water pressure, drainage, and water-treatment facilities are required?
Operating cost: What are the expected costs of water, electricity, detergents, consumables, and routine servicing?
Maintenance: Are spare parts, technical support, operator training, and service documentation available?
Installation: Does the quotation include shipping, installation guidance, commissioning, and any necessary site preparation?
Commercial terms: What are the warranty conditions, delivery lead time, payment terms, and applicable certification requirements?
When comparing proposals, request itemized quotations and confirm whether the quoted price covers the complete system or only the main machine. Local construction, freight, installation, taxes, and water-treatment equipment can materially affect total project cost.
7. Explore Car Wash Equipment and Automotive Aftermarket Products at YASN
Choosing washing equipment is one part of planning a car wash business or expanding an automotive service operation. Buyers may also need cleaning accessories, vehicle care products, automotive electronics, modification parts, films, and interior accessories depending on their business model.
Use the YASNShow car wash equipment category to explore relevant product listings. You can also browse automotive aftermarket products to discover other product categories relevant to your business.
YASNShow is an automotive aftermarket exhibition platform. If you are researching industry products, suppliers, or exhibition opportunities, visit the YASN automotive aftermarket exhibition page for the latest confirmed exhibition information, participation details, and visitor guidance.
8. Frequently Asked Questions
Is a tunnel car wash better than a rollover car wash?
Neither is universally better. Tunnel systems are designed for continuous vehicle flow and may suit high-volume sites. Rollover systems process vehicles individually and may be more practical for sites with limited space or moderate demand.
Is a touchless car wash the same as a rollover car wash?
No. Rollover describes an equipment layout in which a gantry moves around a stationary vehicle. Touchless describes a cleaning method that avoids brush contact. A rollover machine can use a touchless cleaning system.
Does a touchless car wash remove heavy dirt effectively?
Performance depends on water pressure, nozzle coverage, detergent formulation, chemical dwell time, and the type of contamination. Heavy mud and stubborn road film may require additional treatment or a different cleaning method.
What should I compare when buying an automatic car wash machine?
Compare the intended application, vehicle dimensions, throughput, site requirements, wash quality, water and energy consumption, maintenance, spare parts, warranty, installation requirements, and total operating cost.
Can I compare multiple car wash equipment suppliers before purchasing?
Yes. Request comparable technical specifications, itemized quotations, installation requirements, service arrangements, and references where available. Industry exhibitions can also provide opportunities to explore products and communicate with relevant suppliers.
Conclusion
The choice between tunnel, rollover, and touchless car wash machines should be based on site conditions, vehicle demand, cleaning expectations, and long-term operating requirements. Tunnel systems may suit continuous high-volume operations, rollover machines can fit individual wash bays, and touchless technology offers a no-brush cleaning approach that may suit specific customer needs.
Define your project requirements before comparing equipment, and confirm the capabilities of each proposed model with its supplier. To continue researching products and automotive aftermarket opportunities, explore the relevant car wash equipment listings and visit the YASN exhibition information page.
