New-Generation SiC MOSFET Fully Upgraded: Interpretation of Automotive-Grade Module Maintenance and Application Adaptation

In June 2026, Wolfspeed officially launched its fifth-generation Gen5 SiC MOSFET power device platform. With significantly reduced conduction losses and broader operating condition adaptability, this silicon carbide device has been gradually integrated into multiple 800V high-voltage platform new energy vehicle models on the market. It is mainly used in core power electronics components such as main drive inverters and integrated on-board chargers.

Compared with fourth-generation SiC devices and mainstream silicon-based IGBTs in the industry, Gen5 achieves a comprehensive upgrade across chip processing technology, electrical performance parameters, and packaging materials, enabling better compatibility with the latest automaker requirements for fast-charging efficiency and vehicle thermal management standards. As a large number of supporting vehicle models enter the aftermarket service and maintenance sector, device iteration is driving updates in maintenance and servicing standards, making compatibility-oriented operations a key focus in new energy vehicle power electronics repair.

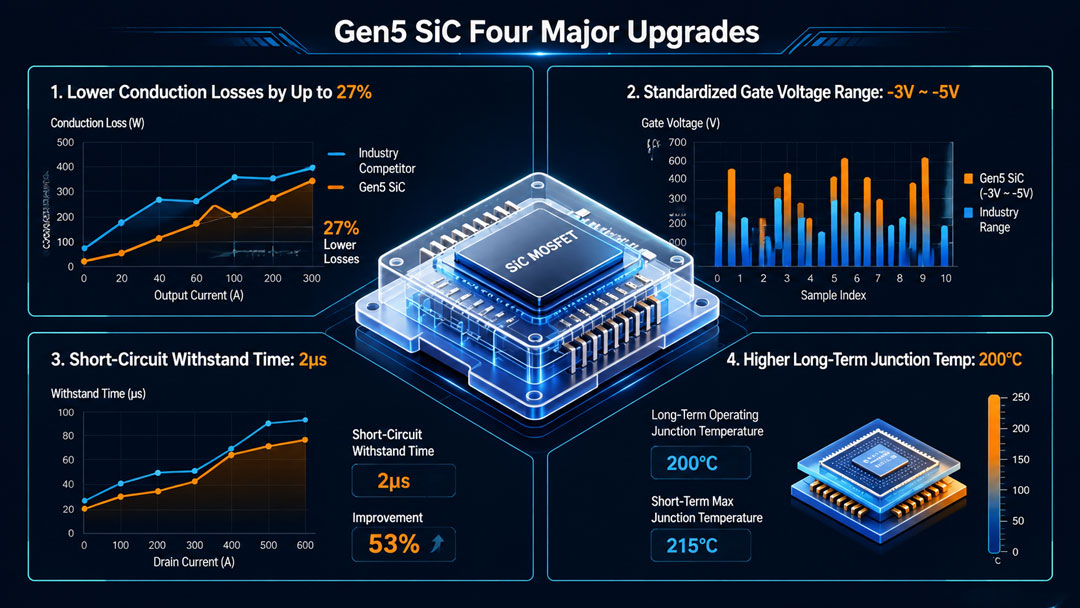

1. Four Major Upgrades of Gen5 SiC

Compared with fourth-generation SiC modules and conventional silicon-based IGBT power devices, Wolfspeed Gen5 achieves a fundamental, system-level upgrade across chip fabrication processes, architectural design, electrical threshold parameters, and packaging materials. This iteration delivers comprehensive optimization in device physical performance and high-voltage adaptability, with the core improvements concentrated in four key areas.

1.1 Conduction Performance Optimization – Lower Losses in High-Frequency Operation

Based on a new chip fabrication process, the Gen5 1200V automotive-grade device achieves a specific on-resistance as low as 3.4 mΩ·cm² at 175°C. Compared with industry devices of the same specification, overall conduction losses are reduced by up to 27%. The switching response speed is also improved, resulting in smaller voltage fluctuations under high-load conditions such as high-voltage fast charging and full-load hill climbing, and significantly enhanced circuit stability.

1.2 Architecture and Process Continuity – More Standardized Gate Electrical Range

The Gen5 platform continues to adopt the planar MOSFET architecture, which offers strong compatibility with automotive applications. It optimizes the gate oxide interface fabrication process and standardizes the turn-off negative voltage range to -3V to -5V. The electrical tolerance window of the gate oxide layer is further refined, improving switching control precision.

1.3 Improved Short-Circuit Withstand Capability – Aligned with 800V Vehicle Protection Logic

Gen5 devices are rated for a short-circuit withstand time of approximately 2 μs, matching the protection thresholds of mainstream 800V vehicle electronic control systems. Under high-voltage transient stress, the controllable response window is optimized, making it compatible with vehicle-level high-voltage overload and surge protection architectures.

1.4 Enhanced Thermal Packaging Performance – Comprehensive Thermal Adaptation Upgrade

The long-term rated junction temperature is increased to 200°C, while the short-term maximum junction temperature reaches 215°C. With optimized DBC ceramic substrates and rebalanced thermal expansion coefficients of composite solder layers, the device demonstrates reduced packaging deformation and delamination risk under high-temperature cycling and long-duration fast-charging conditions, significantly improving long-term durability.

2. Four Key Adaptation Points for Gen5 Module Maintenance

Based on practical feedback from nationwide new energy vehicle specialist repair shops and semiconductor aftermarket industry analysis, the core changes in Gen5 maintenance are primarily driven by technical iteration and updates in maintenance standards. After adapting processes, components, and inspection systems, related maintenance operations can be implemented smoothly. The industry has already formed a standardized adaptation approach.

2.1 Added Electrical Latent Defect Detection and Full Pre-Inspection Process Optimization

During Gen5 device operation, slight gate parameter drift may occur. In vehicle operation, this is typically reflected as adaptive fast-charging power regulation and power limiting protection, while the device shows no visible physical damage. Conventional multimeter continuity testing can only determine on/off hardware states. By integrating low-voltage waveform verification and gate leakage current measurement, and simultaneously analyzing the operating condition of the driver circuit, a complete assessment of device health can be achieved. This approach is compatible with standard maintenance pre-inspection workflows.

2.2 Intergenerational Parameter Incompatibility Requires Same-Spec Component Matching

From a fundamental electrical parameter perspective, Gen5 and previous-generation Gen4 modules differ in gate parasitic capacitance and factory-calibrated switching slew rates. Even if external dimensions and voltage ratings appear identical, cross-generation replacement is generally not recommended. At present, OEM-compliant parts are primarily supplied to brand vehicle aftersales systems. The third-party compliant supply chain is continuously expanding capacity. Supporting components such as driver chips, gate resistors, and clamping micro-components are mostly Gen5-specific configurations. Priority should be given to identical-model components to ensure installation compatibility and operational reliability.

2.3 Packaging Temperature Resistance Refinement and Standardized Thermal-Control Disassembly Procedures

Relying on newly developed composite packaging materials, the safe thermal operating window for Gen5 module assembly and disassembly is 280°C–310°C, with a relatively narrower tolerance range for temperature control. Industry-standardized maintenance processes adopt high-precision zoned constant-temperature soldering stations combined with segmented intermittent heating techniques. This approach protects the ceramic substrate, internal bonding wires, and outer encapsulation structure, and represents a conventional optimization and upgrade in maintenance processes.

2.4 Gradual Release of OEM Parameters and Convergence of Industry Maintenance Standards

At present, Wolfspeed is gradually opening Gen5 OEM switching waveform data, no-load aging parameters, and high-voltage operating condition acceptance criteria to compliant third-party new energy maintenance organizations, progressively breaking the previous parameter barriers controlled by OEM automakers. The industry is steadily moving toward unified maintenance and acceptance standards. Technicians, using compliant professional testing equipment and referencing OEM operating condition benchmarks, can complete post-maintenance quality validation and ensure compliance with vehicle factory-level performance requirements.

3. Standardized Full Maintenance Workflow for Gen5 SiC Modules

Based on official maintenance guidelines and general operating standards from leading new energy specialist repair shops, this section summarizes a standardized maintenance workflow applicable to small- and medium-sized workshops and specialized repair facilities. The process balances compliance and practical execution, maintenance efficiency, and installation stability.

3.1 Tiered Electrical Pre-Inspection for Full-Range Device Health Assessment

The first step in maintenance is a tiered electrical pre-inspection to comprehensively evaluate device health status. Before operations, strict vehicle high-voltage shutdown procedures must be executed to fully discharge residual bus capacitor energy, and high-voltage lockout/tagout (LOTO) safety protocols must be implemented. The workflow includes: External visual inspection of module encapsulation, substrate, and bond wire integrity Measurement of bipolar conduction voltage drop using professional test equipment Low-voltage energized driver board verification to confirm gate negative voltage compliance Circuit waveform analysis to detect high-frequency electrical fluctuations Based on these tests, fault classification is completed and a corresponding maintenance strategy is determined.

3.2 Zoned Constant-Temperature Disassembly Aligned with Original Packaging Processes

A zoned constant-temperature system with temperature control accuracy of ±5°C is used. Key process parameters include: Stable segmented heating at 300°C Intermittent temperature control methodology to reduce thermal stress Auxiliary enameled wire desoldering technique to assist separation This ensures smooth detachment between the module and PCB solder pads. After disassembly: Clean solder pad substrates Verify substrate integrity Apply insulating protective coating restoration when necessary These steps ensure the restoration of electrical insulation performance in the power electronics system.

3.3 Same-Spec Component Assembly with Synchronized Circuit Validation

Only identical-model, compliant Gen5 power modules are used for installation. Full electrostatic discharge (ESD) protection for gate terminals is maintained throughout the process. Simultaneously: Replace and verify supporting components such as gate resistors on the driver board and Miller clamp components Remove residual thermal interface materials from the heat dissipation base Apply OEM-specified thermal grease evenly Use diagonal torque tightening to secure screws in stages These procedures optimize thermal conduction efficiency and overall heat dissipation performance of the module system.

3.4 Tiered Verification and OEM-Standard Parameter Acceptance Testing

After assembly, a multi-stage verification process is performed: Low-voltage steady-state waveform testing to confirm stable circuit operation Stepwise voltage ramp-up to 800V rated conditions for no-load aging tests Monitoring of: Device temperature rise Insulation resistance Switching waveform compliance with OEM standards After validating compatibility with multiple operating scenarios such as fast charging and driving conditions, the maintenance process is completed and the unit is released for delivery.

The 800V high-voltage architecture has become the mainstream development direction for current new energy vehicle platforms. With the continuous increase in installed volume of Wolfspeed’s fifth-generation SiC devices, automotive power electronics maintenance is also entering an era of refinement and device-specific specialization. Compared with previous-generation silicon carbide and silicon-based devices, the core evolution of Gen5 maintenance does not lie in increased repair difficulty. Instead, it is primarily reflected in systematic upgrades of process standards, component matching, and inspection methodologies. By aligning with OEM electrical parameters, standardizing disassembly temperature control procedures, and ensuring compliant selection of replacement components, standardized maintenance operations can be executed smoothly. This enables effective adaptation for third-party repair workshops engaged in new energy vehicle electronic control maintenance services under current industry conditions.
