CINEVE | In-Depth Analysis of Smart Vehicle CMF Design: A Technology-Driven Experience Revolution

In the current era of converging smart electric vehicle architectures, CMF (Color, Material, and Finish) design for automotive interiors and exteriors has moved beyond traditional aesthetics. It has evolved into an interdisciplinary field that integrates materials science, ergonomics, electronic engineering, and sustainability principles. It directly defines the physical and emotional interaction interface between users and vehicles, and serves as a core technological domain for shaping brand differentiation and product competitiveness. In this article, we will provide an in-depth analysis of this technology.

1. CMF Technical Core: From Physical Properties to System Integration

1.1 Color: From Static Coatings to Dynamic Optical Systems

In traditional automotive manufacturing, color is achieved through multi-layer coating systems (electrophoretic layer, primer, basecoat, and clearcoat). The core technical focus lies in pigment stability, weather resistance, and batch-to-batch consistency. In the era of smart vehicles, however, color technology is undergoing two major transformations:

• Dynamic and Interactive Color Systems: Smart glass technologies based on electrochromic (EC) or suspended particle device (SPD) principles already enable stepless adjustment of light transmittance in windows and panoramic roofs. More advanced developments include the exploration of electronic ink (E Ink) microcapsule technology for automotive exterior surfaces. This system manipulates the arrangement of charged black-and-white or color particles under an electric field to achieve pixel-level color variation with extremely low energy consumption. The key technical challenge lies in reliably integrating fragile e-paper films onto complex 3D curved body panels, while meeting automotive-grade requirements for impact resistance, weather durability, and long service life.

• Functionalized Color: From Aesthetic Layer to Performance-Driven Material System Color is increasingly being endowed with physical functionality. For instance, in areas used for LiDAR (Light Detection and Ranging) covers, specialized coatings or materials are required to achieve high transmittance and low light scattering for specific laser wavelengths (such as 905 nm or 1550 nm). This ensures that sensor performance is not compromised by the exterior finish. In automotive interiors, “black matrix” regions designed to conceal displays and embedded sensors require coatings with extremely high optical density (OD) to block light effectively. At the same time, these materials must still allow precise light transmission under controlled backlighting conditions, enabling functional display integration without visible interference in the surface design.

2.2 Material: A Precise Balance of Performance, Perception, and Sustainability

Modern automotive material selection is a multidimensional optimization problem that must simultaneously satisfy mechanical performance, perceived quality, lightweighting requirements, cost efficiency, and environmental sustainability.

• Integration of Structural and Decorative Materials:The convergence of structural and aesthetic functions is a key trend in modern automotive materials engineering. Taking carbon fiber reinforced polymer (CFRP) as an example, different layup strategies—such as unidirectional tapes and woven fabrics—not only determine the mechanical strength and stiffness of components, but also create distinctive surface textures that have become a visual symbol of high-performance design. In mass-production vehicles, glass fiber reinforced thermoplastics (such as PP+LGF) are more commonly used. These materials are applied to large and complex components such as front-end modules and tailgate inner panels, achieving significant weight reduction while maintaining structural integrity. At the same time, in-mold texture (IMT) technology enables these parts to acquire refined surface grain patterns directly during the molding process, eliminating the need for additional post-processing or decorative finishing steps.

Smart and Functional Materials

• Light-Transmitting Composite Materials:Optical fibers (such as PMMA light guides) can be woven into or embedded within semi-transparent substrates like silicone or TPU. When combined with LED light sources, these structures enable large-area, uniform, and soft surface illumination. This approach is widely used in ambient lighting strips and backlit intelligent surface systems, delivering both functional lighting and advanced aesthetic effects.

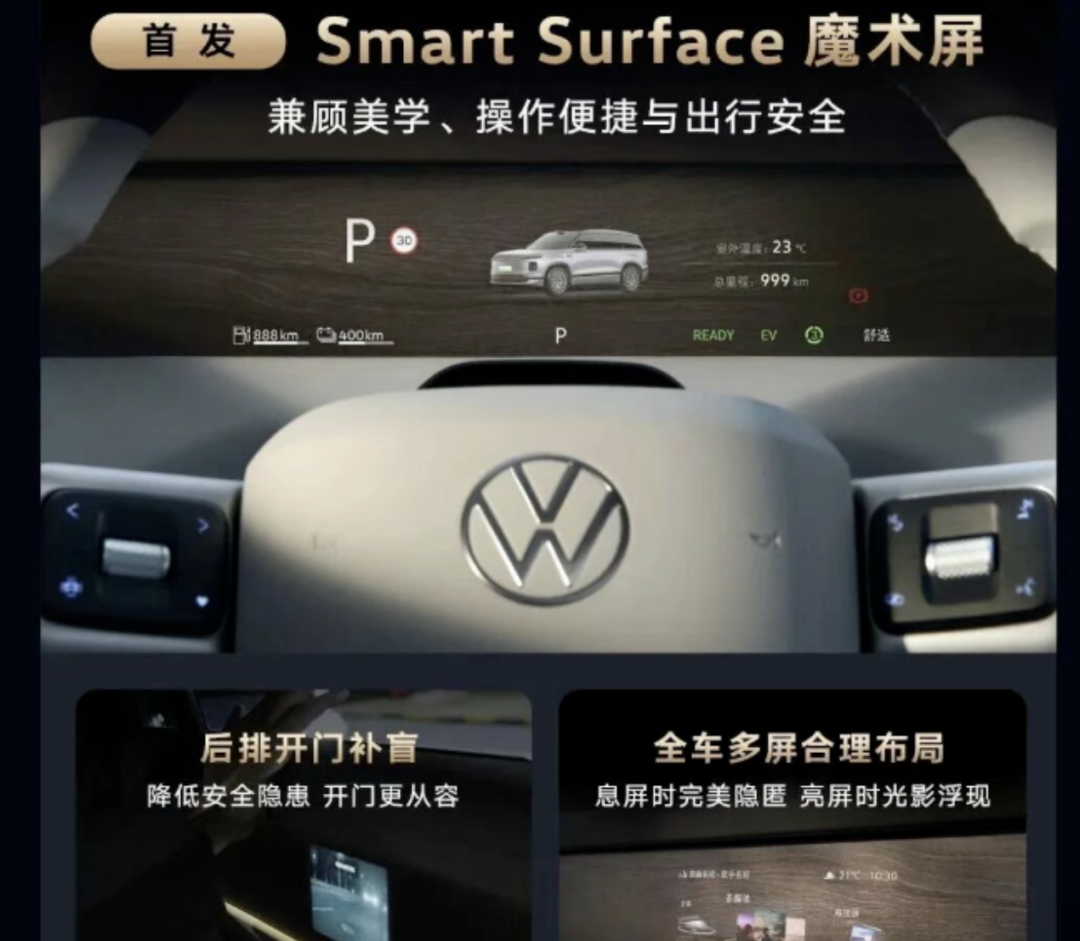

• Haptic Feedback Materials:Under touch-sensitive surfaces, piezoelectric ceramics or electromagnetic actuators can be integrated to generate programmable vibration patterns. By precisely controlling waveform parameters, the system can simulate the tactile response of different physical controls, such as the “click” sensation of a rotary knob or the “press” feedback of a mechanical button. This technology is a core enabler of replacing physical buttons while preserving a realistic tactile experience in next-generation vehicle human-machine interfaces.

Sustainable Material Systems

• Bio-Based Materials:Materials derived from renewable resources are increasingly being adopted in automotive engineering. For example, PA11 (polyamide 11), extracted from castor oil, offers performance characteristics close to petroleum-based PA12 and is widely used in fuel lines and wire harness sheathing. Similarly, polylactic acid (PLA), produced through fermentation of corn starch, can be modified for use in non-structural interior components.

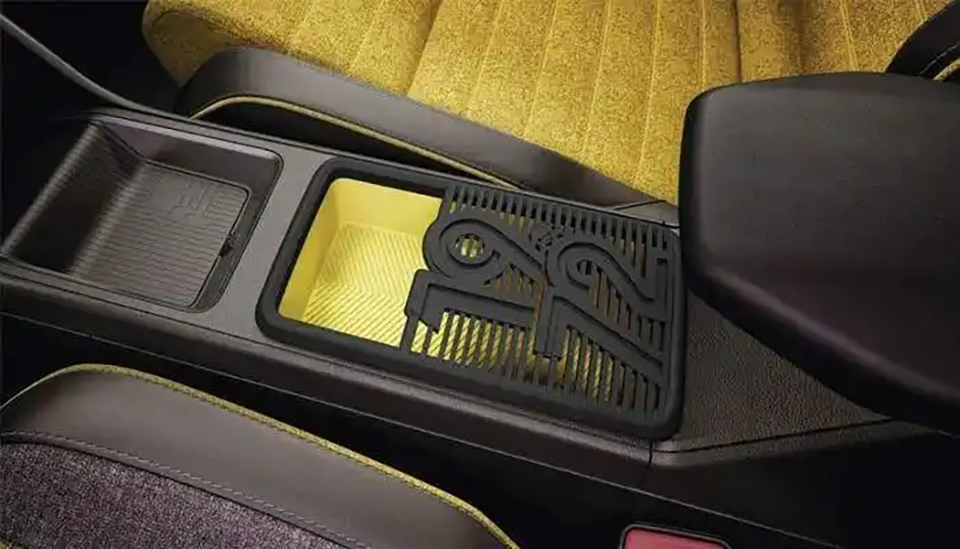

• Recycled Materials:A growing range of secondary raw materials is being integrated into vehicle production, including ocean-recovered plastics (such as discarded fishing nets), post-consumer recycled (PCR) plastics, and recycled carbon fiber. These materials undergo rigorous processes involving cleaning, sorting, re-pelletizing, and performance validation before being applied to components such as carpets, wheel arch liners, and selected interior panels.

• Vegan Leather Alternatives:Mainstream solutions include PU-based synthetic leather, which offers balanced performance, and bio-based PU leather, where a portion of raw materials is derived from plant sources. Emerging technologies also include mycelium leather, cultivated from fungal mycelium. This material is fully bio-based and biodegradable, representing a promising direction for next-generation sustainable interior surfaces.

1.3 Finishing: Manufacturing as the Realization of Design Intent

Finishing processes act as the critical bridge between color-material systems and the final product, with direct implications for cost efficiency, production scalability, and visual performance.

Exterior Key Processes

• Paint-Free (In-Mold Color) Technology:  The core principle of paint-free technology lies in engineering the material itself. By incorporating metallic effect pigments (such as aluminum flakes), pearlescent pigments, or specialty dyes into base resins (e.g., PP, ABS, or PC/ABS), and precisely optimizing injection molding parameters—such as temperature, pressure, and injection speed—components can directly achieve high-gloss, metallic, or pearlescent surface finishes without post-painting. The primary technical challenges include eliminating flow marks and weld lines, while ensuring consistent color uniformity across production batches. At present, PMMA/ASA alloy systems have become the mainstream material choice for high-gloss black paint-free applications, such as front grilles and decorative pillars, due to their excellent surface gloss, UV resistance, and long-term weatherability.

• Hot Stamping:The core of hot stamping technology lies in the stamping film—composed of a carrier layer, release layer, decorative layer, and adhesive layer—combined with a precisely heated silicone stamping head. By accurately controlling temperature, pressure, and dwell time, decorative elements such as metallic finishes, color patterns, and textures are transferred onto the surface of plastic components. This process offers several advantages, including the ability to reproduce complex patterns with micrometer-level precision, excellent adhesion strength, and strong scratch resistance. In addition, it is an environmentally friendly process, as it does not generate electroplating wastewater. In-Mold Decoration (IMD/INS) In-mold decoration technologies, including IMD (In-Mold Decoration) and INS (In-Mold Surfacing), involve placing a pre-formed decorative film into the mold cavity prior to injection molding. During molding, the molten resin bonds with the adhesive layer of the film, enabling decoration and structural formation in a single integrated step. This approach significantly improves production efficiency and is particularly suitable for large-area components with complex curved surfaces, while ensuring consistent surface quality and high integration of form and function.

Interior Key Processes

• Real Wood / Real Aluminum Inlays:These are far more complex than simple surface bonding. In the case of real wood, veneers with a thickness of approximately 0.6 mm are first laminated with aluminum foil or plastic substrates under high temperature and high pressure to form a composite structure. The material then undergoes CNC precision milling, surface sanding, and multiple layers of high-transparency clear coating (typically 7–10 layers) to achieve a deep, premium visual effect. Real aluminum components, on the other hand, are typically processed through anodizing, which forms a hard, wear-resistant aluminum oxide layer on the surface. This layer can also be dyed in a wide range of colors, enabling both durability and aesthetic flexibility.

• Surface Texturing (Texture Engineering):Micro-textures are created on mold steel surfaces using chemical etching or laser engraving, enabling a wide range of finishes—from leather-like grains to geometric patterns. The design of these textures must account for optical performance (light reflection and shadow behavior), tactile feedback, fingerprint resistance, and ease of cleaning. More advanced approaches involve parametric texture design, where algorithms generate complex patterns that are transferred onto molds. This enables gradients, biomimetic structures, and intricate 3D textures that are difficult or impossible to achieve using conventional manufacturing techniques.

2. Deep Integration of CMF and Smart Cockpit: Technical Challenges and Solutions

Smart cockpits require CMF design to seamlessly integrate a large number of electronic systems, introducing new engineering constraints and multidisciplinary challenges.

• Electromagnetic Compatibility (EMC) and Signal Transparency.  To ensure reliable transmission of signals from systems such as millimeter-wave radar, GPS, and Bluetooth antennas, materials used in corresponding cover components must not interfere with electromagnetic propagation. Typical examples include adaptive cruise control (ACC) radar covers behind vehicle emblems and shark-fin antenna housings. These components require materials with low dielectric constant (Dk) and low dissipation factor (Df), such as specific grades of PC (polycarbonate) or PPO (polyphenylene oxide), to minimize signal attenuation and distortion. In addition, decorative surface layers—such as metallic coatings—must be engineered with perforated or grid-based structures to form a frequency selective surface (FSS). This allows the structure to selectively block or transmit electromagnetic waves of specific frequency bands, ensuring functional transparency for critical communication and sensing systems while maintaining aesthetic integrity.

• Thermal Management.  Large-format displays and high-performance computing (HPC) units generate significant heat loads within modern smart cockpits. Consequently, surrounding decorative materials must either exhibit sufficient thermal conductivity or be engineered with dedicated heat dissipation pathways to ensure system stability. In addition, under direct solar irradiation, dark interior surfaces—particularly high-gloss black finishes—can experience rapid surface temperature increases. This not only degrades tactile comfort but may also impact the service life of embedded electronic components. To address this, solutions are implemented at both the material and system levels, including the use of infrared-reflective pigments in material formulations and the coordinated design of HVAC airflow channels for active thermal regulation.

• Durability and Testing Standards.  Touch-sensitive areas in smart surfaces are subjected to extremely high usage cycles, often ranging from hundreds of thousands to over one million actuations. As a result, surface coating systems—such as anti-fingerprint (AF) and anti-scratch (AS) layers—must meet significantly higher durability requirements than those of conventional interior materials. Validation protocols include abrasion resistance testing (e.g., Taber abrasion and reciprocating wear tests), chemical resistance evaluation (exposure to sunscreen, cleaning agents, and other contaminants), and accelerated weathering tests (UV exposure and temperature-humidity cycling). These rigorous assessments ensure that material performance remains stable and functional throughout the full lifecycle of the vehicle.

3. Future Technology Outlook

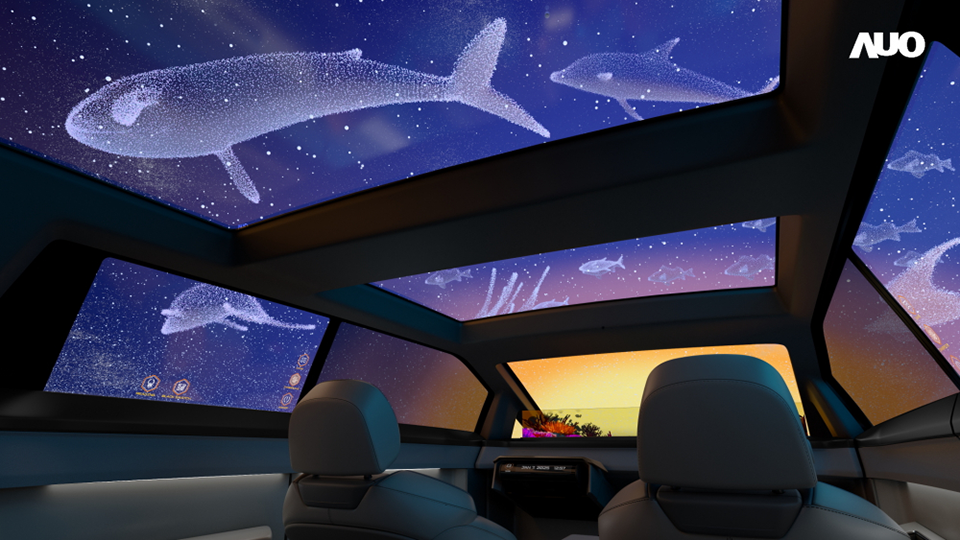

• Digital CMF. Leveraging technologies such as color-changing materials, electronic paper, and Micro-LEDs to transform interior and exterior surfaces into programmable display media, enabling real-time switching of visual themes and interior ambiance.

• Biosensing and Responsive Materials: Exploring smart materials capable of automatically adjusting their color, transparency, or stiffness based on the occupant's physiological state (such as heart rate and body temperature monitored via embedded sensors) to create an adaptive environment.

• Circular design: Incorporating considerations for disassembly, separability, and recyclability right from the material selection stage. For example, employing snap-fit connections instead of adhesives and using mono-materials or easily separable composite materials lays the foundation for closed-loop material recycling at the end of the vehicle's life.

The ultimate goal of CMF design is to render technology "invisible" while making the user experience "visible." Through rigorous engineering execution, it transforms cold hardware into a mobile space that feels warm and tangible—one that resonates emotionally with the user. In the era of software-defined vehicles, exceptional CMF serves as the physical foundation for the seamless integration of hardware and software experiences, acting as an indispensable link in the evolution of smart vehicles from mere "modes of transport" into "life partners."
