Film Cutting Software & Machines

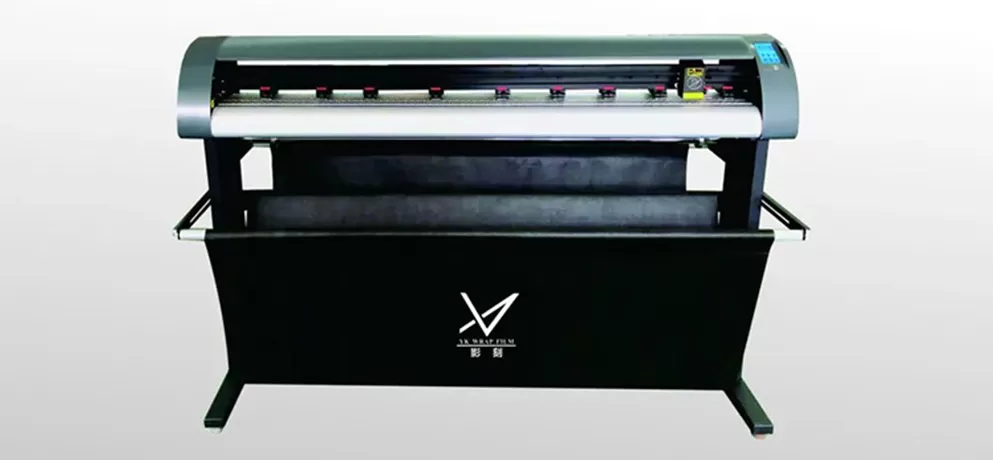

Upgraded 3-in-1 Film Integration Machine
Product Features
| Parameter | Value |
|---|---|
| Maximum Material Width | 1650 mm |
| Applicable Material Thickness | ≤1.5 mm |
| Material Fixing Method | Vacuum Suction Platform |
| Material Feeding Method | Automatic Feeding Device |
| Maximum Cutting Speed | 1000 mm/s |
| Maximum Cutting Size | 1600 × 800 mm (supports continuous roll processing) |
| Maximum Blade Pressure | 1000 g, 10 pressure levels |
| Pressure Adjustment | Adjustable in 10 g increments |
| Blade Holder Diameter | Ø2.0 mm |
| Blade Tip Angle | 30° / 45° / 60° |
| Drive Type | Hybrid Servo |
| Machine Packaging Dimensions | 2280 × 1650 × 1350 mm |
| Machine Dimensions (W × L × H) | 1910 × 1600 × 1185 mm |
| Net / Gross Weight | 450 kg / 550 kg |
