Film Cutting Software & Machines

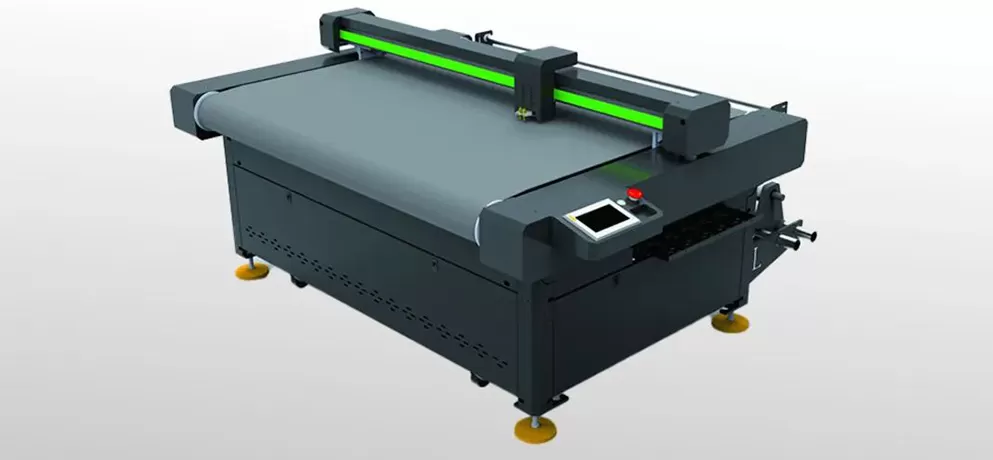

Flat Car Wrap Film Cutting Machine
Product Features
4.3-inch full-touch mobile display with start/stop buttons, easy to operate.
Imported dual servo system ensures high-precision, smooth, and stable operation.
Specialized product (straight-line cutting) with smooth blade movement and dual straight-line blade guidance.
Ultra-quiet centrifugal fan with paper stabilization ensures stable cutting without wrinkling.
U-disk plug-and-play functionality, quick operation, one-click production of required designs.
| Item | Specification |
|---|---|
| Mainboard | 256-bit dual-control intelligent chip |
| Control Panel | 4.3-inch full-touch high-definition mobile display |
| Drive Method | Imported ultra-quiet servo system |
| Blade Pressure | 0–1000g (digitally adjustable) |
| Mechanical Precision | 0.01 mm |
| Maximum Cutting Thickness | 1.0 mm |
| Suction Power | 90 CFM–8 levels, 18.8 m² |
| Maximum Media Width | 1650 mm |
| Maximum Film Feeding Speed | 1200 mm/s |
| Maximum Cutting Width | 1550 mm |
| Machine Interface | USB 2.0 / USB flash drive |
| Machine Weight | Gross: 80 kg (with stand), Net: 75 kg |
| Suction Fan | 12V 0.6A–1.0A ultra-quiet centrifugal fan |
| Installation Size | 2000 × 1200 × 1300 mm |
| Packaging Size | 2000 × 550 × 460 mm |
